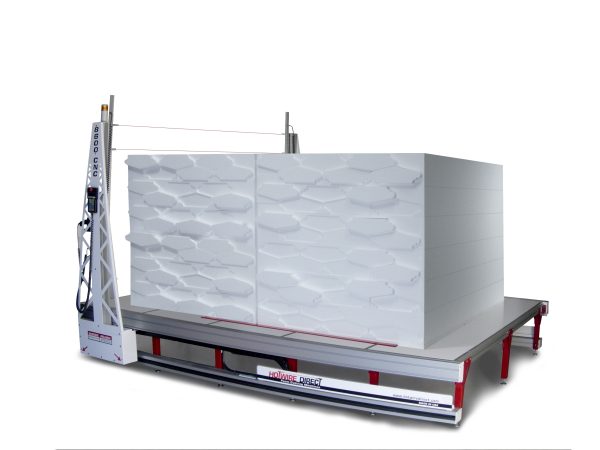

8600 CNC Contour Cutter

Description Machine Specifications Cutting Capacity 106″ x 51″ x 105″ (269cm x 130cm x 266cm). Wire is 105″ long. Other sizes available. Resolution 0.001″ (0.025mm) Accuracy .002″/foot (0.0167mm/m) Drive Motors High accuracy Servos Drive System X & Y axis timing belt drives, precision sealed bearings ride on hardened ground rods Max. Cutting Speed 55″ (140cm) per minute Max. Rapid Speed 1,200″ (3000cm) per minute Cutting Wire Up to 2 – .014 (.355mm) wires Power Required 110v – 120v single phase 50-60hz, 20 Amp Warranty 1 year on all electrical components, 3 years on all mechanical components Tech Support Unlimited support at no charge* *We back the mechanical and electronic equipment and software to perform as advertised and expected free of charge within the warranty period. We do charge an hourly rate for fixing problems associated with things outside our control such as when 3rd party products are introduced i.e. modems are introduced in the network and connection is lost, or reloading software when customer changes computers, re-training on CAD/CAM, and creating custom drawing files for customers. CNC Production Example Prep & Production Time for 72, 8′ Pieces (576′) Draw: 8 min Nesting: 20 min Coding: 1 min Multiwire Setup (2 wires): 1 min Cutting: 42 min Total First Run: 72 min Total Second Run: 42 min Options And Specifications   Dimensional Cutting and Wire Capacity Attachments for Extending Creativity   CNC Foam Cutting in Action You can enjoy the benefits of the 8600 CNC with a low monthly payment. Click here for more information and a finance application.
