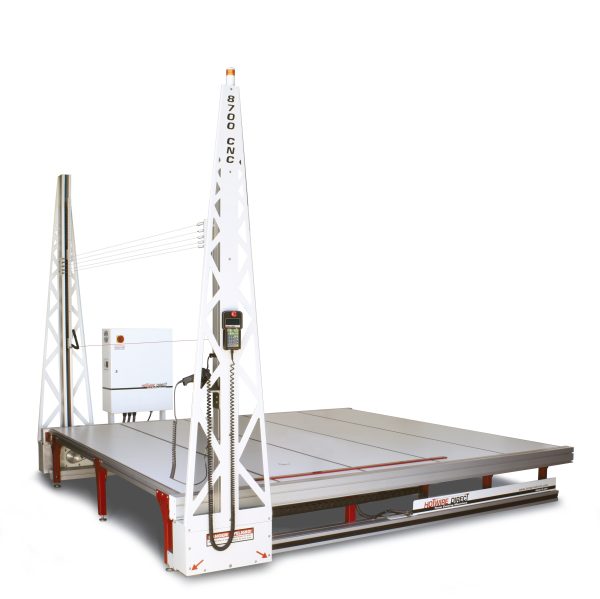

8700 CNC Contour Cutter

Description Machine Specifications Cutting Capacity 106″ x 51″ x 105″ (269cm x 130cm x 266cm). Wire is 105″ long. Other sizes available. Resolution 0.001″ (0.025mm) Accuracy ±.002″/foot (0.0167mm/m) Drive Motors Four 160 ounce/inch (1.8kg/cm) AC servos, 4000 counts per revolution encoders Drive System X & Y axis timing belt drives, precision sealed bearings ride on hardened ground rods Max. Cutting Speed 55″ (140cm) per minute Max. Rapid Speed 1500″ (3,810cm) per minute Cutting Wire Up to 6 – .014 (.355mm) wires Power Required 240v single phase 50-60hz, 20 Amp Warranty 1 year on all electrical components, 3 years on all mechanical components Tech Support Unlimited support at no charge CNC Production Example Prep & Production Time for 72, 8′ Pieces (576′) Draw: 8 min Nesting: 20 min Coding: 1 min Multiwire Setup (6 wires): 1 min Cutting: 14 min Total First Run: 44 min Total Second Run: 14 min   Picture below shows 4 blocks or 64′ of a concrete bridge’s form liner that was cut in approx. 38 minutes. Options And Specifications Dimensional Cutting and Wire Capacity Attachments for Extending Creativity CNC Foam Cutting in Action You can enjoy the benefits of the 8700 CNC with a low monthly payment. Click here for more information and a finance application.
